Exam 3: Advanced Scheming

Topics: Numeric recursion, documentation, code reading.

Consider the following function definition for a function that takes a real number, x, and a non-negative integer, n, as parameters.

(define fun
  (lambda (x n)
    (cond
      [(zero? n)
       1]
      [(odd? n)
       (* x (fun x (- n 1)))]
      [else
       (square (fun x (/ n 2)))])))

Figure out what this procedure does.

a. Rename fun to something appropriate.

b. Write the 6P-style documentation for the renamed fun.

c. Explain how the procedure achieves its goal.

d. Write a short test suite for the renamed function. You should have approximately six tests, with at least three different values for x and at least three different values for n.

Topics: Integer-encoded RGB colors, recursion, named let, documentation, precondition testing.

In case you've forgotten, one of the simple metrics for the “distance” between two colors is the sum of the squares of the differences between their individual components.

;;; Procedure:
;;;   irgb-distance
;;; Parameters:
;;;   color1, an integer-encoded RGB color
;;;   color2, an integer-encoded RGB color
;;; Purpose:
;;;   Find the distance between color1 and color2, using some simple
;;;   metric for distance.
;;; Produces:
;;;   distance, a non-negative real number
;;; Preconditions:
;;;   [No additional]
;;; Postconditions:
;;;   If color1=color2, then distance is 0
;;;   For any three colors, a, b, and c, if
;;;     (irgb-distance a b) < (irgb-distance b c)
;;;   then a is likely to be perceived as being closer to b than c.
;;; Plus:
;;;   irgb-distance is commutative.  That is, for any two colors, a and b,
;;;     (irgb-distance a b) = (irgb-distance b a)
(define irgb-distance
  (lambda (color1 color2)
    (+ (square (- (irgb-red color1) (irgb-red color2)))
       (square (- (irgb-green color1) (irgb-green color2)))
       (square (- (irgb-blue color1) (irgb-blue color2))))))

a. Document a procedure, (irgb-furthest color colors), that finds the element of colors that is furthest from color using irgb-distance as the distance for the metric.

b. Implement irgb-furthest. You must use named let for a recursive kernel for this procedure.

Here's a start.

(define irgb-furthest
  (lambda (color colors)
    (let kernel ([remaining (cdr colors)]
                 [guess (car colors)])
      ...)))

c. Add appropriate precondition testing so that irgb-furthest issues an appropriate error message when it receives incorrect inputs. You should strive to make sure that the error messages clearly correspond to the different kinds of errors that might occur.

Topics: Strings, numeric recursion.

Write but do not document a procedure, (string->words str), that takes a string str as input and returns a list of strings, each containing one word from the input string. You may assume words are separated by spaces.

Here are some example uses of string->words.

> (string->words "Hello World")
'("Hello" "World")

> (string->words "Words may include punctuation. That is okay!")
'("Words" "may" "include" "punctuation." "That" "is" "okay!")

> (string->words "")
'("")

> (string->words "oneword")
'("oneword")

> (string->words "two  spaces")
'("two" "" "spaces")

Topics: Strings, higher-order procedures, map, documentation.

Some time ago, a student who I will call “Gle” came up with something like the following as an alternative to an existing procedure.

(define f (lambda (a b c) (list->string (map (o (l-s string-ref a) (l-s + b)) (iota (- c b))))))

Figure out what the procedure does and then do the following.

a. Rename the procedure and the parameters so that their type and purpose is clearer.

b. Reformat the code.

c. Document the updated procedure.

Topics: Turtle graphics, using actions, for-each

Sometimes it's useful to make lists of actions for a turtle to complete. For example, to make a triangle, we can have "forward 10, turn 120, forward 10, turn 120, forward 10". In Scheme, we might represent each action as a one-parameter procedure. For example, (r-s turtle-forward! 10) or (lambda (t) (turtle-teleport! t 100 100)).

Write but do not document a procedure, (turtle-script! turtle script!) that has the turtle follow a script, where the script is a list of one-parameter procedures. You may not use explicit recursion.

Here's the documentation for turtle-script!.

;;; Procedure:
;;;   turtle-script!
;;; Parameters:
;;;   turtle, a turtle
;;;   script, a list of one-parameter functions
;;; Purpose:
;;;   Have turtle execute the actions in script one by one
;;; Produces:
;;;   turtle, the same turtle
;;; Preconditions:
;;;   script has the form '(action-1! ... action-n!)
;;;   Each action is a procedure of one parameter that takes a turtle
;;;     as input.
;;; Postconditions:
;;;   The following actions have been executed in turn
;;;     (action-1! turtle)
;;;     (action-2! turtle)
;;;     ...
;;;     (action-n! turtle)

Here are a few examples.

	(turtle-script! (turtle-new (image-show (image-new 200 200))) (list (section turtle-teleport! <> 100 50) (r-s turtle-face! 90) (r-s turtle-forward! 80) (r-s turtle-set-color! "red") (r-s turtle-turn! -45) (r-s turtle-forward! 30) (r-s turtle-set-color! "grey") (r-s turtle-turn! -90) (r-s turtle-forward! 60) (r-s turtle-set-color! "blue") (r-s turtle-face! 180) (r-s turtle-forward! 100)))
	(define side-script (list (r-s turtle-forward! 100) (r-s turtle-turn! 90))) (define square-script (append (list (lambda (t) (turtle-teleport! t 50 50)) (r-s turtle-set-color! "green")) side-script side-script side-script side-script)) (turtle-script! (turtle-new (image-show (image-new 200 200))) square-script)

Topics: Turtle drawings, recursion, recursion with helpers, numeric recursion, documentation.

Write and document a procedure, (turtle-tree! turtle trunk-length branches levels), that uses the provided turtle to draw a tree. You can think of a tree as a trunk (a line) with some number of smaller trees "growing" out of the end of the trunk.

To draw a tree, your turtle should rotate to a random angle between plus and minus 60 degrees, then draw a line that is trunk-length pixels long. The end of the trunk should split into some number of smaller trees, determined by the branches parameter. Each smaller tree should have a slightly shorter trunk length (75% of the previous trunk length works well). This process should repeat until the tree has levels levels; for example, if branches and levels are both 3, the tree should have a total of 13 lines. Before drawing a tree, some set-up is required:

; Create a world, a turtle, set the brush to a fine line, and position the turtle
; at the bottom middle of the image facing up.
(define set-up-turtle
  (lambda ()
    (let* ([world (image-show (image-new 300 200))]
           [tommy (turtle-new world)])
      (turtle-turn! tommy -90)
      (turtle-teleport! tommy 150 200)
      (turtle-set-brush! tommy "2. Hardness 100" 0.15)
      tommy)))

After running the set-up code above, you should be able to run the following examples with a completed turtle-tree! function.

	; Draw a tree with a trunk length of 60, three branches, and three levels. (turtle-tree! (set-up-turtle) 60 3 3)
	; Draw a larger tree, this time with five branches and four levels. (turtle-tree! (set-up-turtle) 60 5 4)
	; Draw another large tree. Trees don't always grow straight! (turtle-tree! (set-up-turtle) 60 5 4)

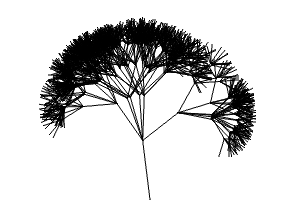

	; Draw a very large tree with seven branches and five levels. This will take quite a while. (turtle-tree! (set-up-turtle) 60 7 5)
