Lab: An introduction to Racket and DrRacket (in MathLAN)

Assigned

Friday, 24 January 2025

Summary

In this laboratory, you will begin to type Scheme/Racket expressions, using DrRacket. Scheme is the language in which we will express many of our algorithms this semester. Racket is a particular implementation of Scheme (which varies a bit from the Scheme standard). DrRacket is the environment in which we will write those programs.

Introduction

Many of the fundamental ideas of computer science are best learned by reading, writing, and executing small computer programs that illustrate those ideas. One of our most important tools for this course, therefore, is a program-development environment, a computer program designed specifically to make it easier to read, write, and execute other computer programs. In this class, we will often use a program development environment named DrRacket along with the programming language Racket, a dialect of a language called Scheme, which is itself a dialect of a language called Lisp. Although Racket is a dialect of Scheme, we will often refer to our language of choice as either “Racket” or “Scheme.”

In this lab, we explore the Racket language and the DrRacket program development environment.

Preparation

Start by comparing your answers on the self-check from the reading on DrRacket with your partner’s answers. After you’ve done the comparison and discussed any differences in your responses, you are ready to begin the computer work.

If you successfully completed the MathLAN laboratory, you should have an icon for DrRacket at the bottom of your screen. Click on that icon to start DrRacket.

DrRacket comes with a comprehensive standard library of functions that we will use throughout the course. However, we have created additional functionality for you to support your exploration of Racket in the form of the csc151 package. To install this package in your DrRacket installation:

• Go to File → Install Package ... in the menu.
• Enter the following URL into the “Package Source” textbox: https://github.com/grinnell-cs/csc151.git#main
• Click Install to install the package. (If you see Update rather than Install, click Update.)

Occasionally, we will ask you to update this package as we add functionality to support new activities in the course. To do this, repeat the instructions above.

If you haven’t done so already today, please do so now to make sure you have the latest version of the library. We’ll be continuing to update it throughout the semester!

One final point of setup you will need to do with a fresh DrRacket installation is set the language you will work it. To do this, do the following:

• Go to Language → Choose language... in the menu.
• Ensure that the first radio button corresponding to “The Racket Language” is selected and press Ok.
• Press the “Run” button in the top-right corner to reload the IDE’s interpreter with the updated language selection.

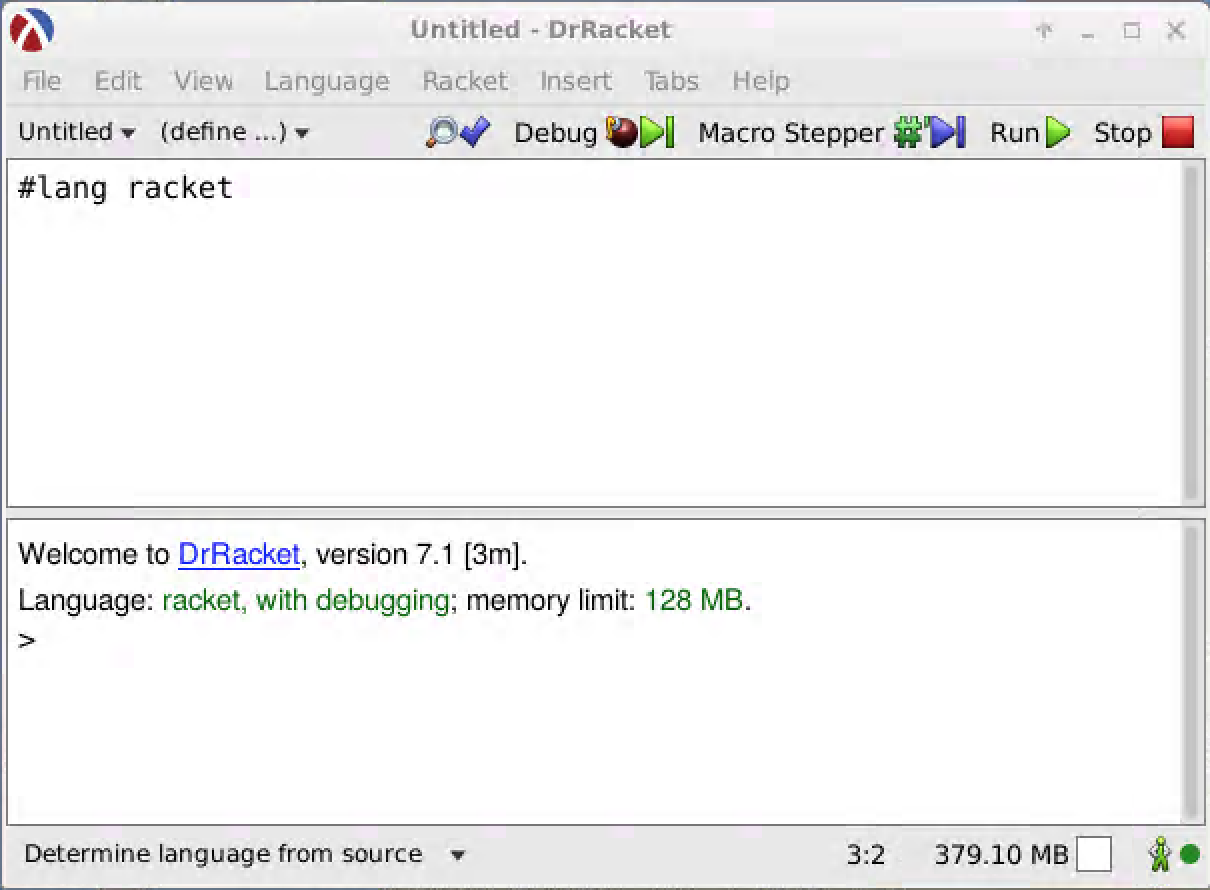

Once you are done, your screen should look as follows:

You can tell if you are good to go if the top pane has the text #lang racket or something similar and the bottom left says “Determine language from source”.

Exercises

For many of our in-class lab activities, you will work with a partner. To help you manage the work between yourself and your partner, the lab instructions will specify how you should work with your partner for each exercise.

• When working collaboratively, make sure to actively engage your partner. Ask questions, share thoughts, and come to a common consensus on the problem. We will have more to share about productive collaborative work in future labs. For now, keep in mind the golden rules of collaborative learning:

  Create an environment where your partner feels comfortable sharing, failing, and ultimately learning. You will find that you will also learn better in this environment, even if you think you know the answers already!

The technique we use in this class is a variant of “pair programming”, a commonly used technique for programming and for learning computer science. In pair programming, we designate the person at the keyboard as the “driver” and the person working with them as the “navigator”. As in most driver/navigator situations, both driver and navigator play important roles. You should designate one of the two of you “A” and one of you as “B”. Each problem will designate whether A or B drives.

You should plan to spend about five minutes on each exercise, perhaps a little less. If you begin to exceed this estimated time for an exercise, grab your instructor or class mentor and ask for help.

In this lab, you will eventually work in a Racket source file that you create and save called shapes.rkt. You will build that file starting with exercise 7. When turning in your work for this lab, you only need to turn in one copy of this file to Gradescope. However, you should make sure to include both your name and your partner’s name in the Gradescope submission!

Exercise 1: Discovering DrRacket’s interactions pane

Driver: A

As you may remember from the reading on DrRacket, the DrRacket window has two panes, one for definitions and one for interactions. Just as in the reading, we’ll begin by considering the interactions pane.

The best way to understand the interactions pane is to use it. So, let’s try a few examples. Type each in the interactions pane, hit Return or Enter, and see if you get the same value.

> (sqrt 144)
12
> (+ 3 4)
7
> (+ 3 (* 4 5))
23
> (* (+ 3 4) 5)
35
> (string-append "Hello" " " "PM")
"Hello PM"
> (string-split "Twas brillig and the slithy toves" " ")
'("Twas" "brillig" "and" "the" "slithy" "toves")
> (length (string-split "Twas brillig and the slithy toves" " "))
6

Of course, one should not just thoughtlessly type expressions and see what value they get. Particularly as you learn Scheme, it is worthwhile to think a bit about the expressions and the values you expect. The self-check in the reading asked you to predict some values. Determine whether your prediction matches what DrRacket computes.

> (* (+ 4 2) 2)
?
> (- 1 (/ 1 2))
?
> (string-length "Snicker snack")
?
> (string-split "Snicker snack" "ck")
?
> (solid-circle 20 "teal")
?

If you get an unexpected error message in one or more cases, that may be part of the intent of this exercise! Feel free to go on to the next exercise, but if you are confused by any of the output that you get, ask the instructor!

Exercise 2: Libraries

Driver: A

As you may have noted, you get an error when you try to make a circle.

> (solid-circle 20 "teal")
Error! solid-circle: undefined;
Error!  cannot reference an identifier before its definition

Why do you get an error? Because the circle procedure is not built-in to standard Racket. Instead, circle and other image-drawing functions are part of the csc151 library (also called a module in Racket). We need to tell Racket that we would like to include this module with a require statement. At the top of the definitions pane (but after #lang racket), add a line that reads:

(require csc151)

Click the Run button and try making the circle again. If you get an error message, make sure that you followed the instructions for configuring DrRacket. If you still get errors, ask for help.

Exercise 3: Experimenting with images

Driver: B

Now that we’ve configured DrRacket to load the image library, let’s check the image examples from the reading. Enter each of the following in the interactions pane and ensure that you get the expected output.

> (outlined-circle 40 "blue" 5)
?
> (outlined-circle 20 "red" 5)
?
> (above (outlined-circle 20 "blue" 5)
         (outlined-circle 40 "red" 5))
?
> (beside (solid-circle 40 "blue")
          (outlined-circle 30 "blue" 5))
?
> (above (solid-rectangle 15 10 "red")
         (beside (solid-rectangle 15 10 "blue")
                 (solid-rectangle 15 10 "black")))
?

Why did we have you check these examples, given that they already appear in the reading? For a few reasons:

1. To remind you that you should not always trust what you read. (We will generally not intentionally deceive you, but there may be times in which we make a mistake.)
2. The same program may not behave the same for all users, depending on how their system is configured.
3. You learn a bit by typing the text by hand and reminding yourself of what you expect. Part of learning how to program is getting the language “under your fingers” in a very tactile, physical sense.

Exercise 4: Reflection: How do you know a result is correct?

Driver: B

Of course, the computer is using some algorithm to compute values for the expressions you enter. How do you know that the algorithm is correct? One reason that you might expect it to be correct is that Racket is a widely-used programming language (and one that we’ve asked you to use). However, there are bugs even in widely-used programs. You may recall a controversy a few years back in which it was discovered that a common computer chip computed a few specific values incorrectly, and no one had noticed. More recently, it was found that the output routine in Microsoft Excel produced the wrong output for a few values. And you may have some evidence that your faculty like to trick you. Hence, you might be a bit suspicious.

Each time you do a computation, particularly a computation for which you have designed the algorithm, you should consider how you might verify the result. (You need not verify every result, but you should have an idea of how you might do so.) When writing an algorithm, you can then also use the verification process to see if your algorithm is right.

Let’s start with a relatively simple example. Suppose we ask you to ask DrRacket to compute the square root of 137641. You should be able to do so by entering an appropriate Scheme expression:

> (sqrt 137641)

DrRacket will give you an answer. How can you test the correctness of this answer? What if you don’t trust DrRacket’s multiplication procedure?

Discuss this question with your partner and come up with common definition of how to test your answer in this context. Once you have a common definition, check your answer with a member of the course staff.

Exercise 5: DrRacket’s definitions pane

Driver: B

(Note: In the labs and reading, code intended to be entered in the interactions pane will generally be written with greater-than sign prompts (>). If you don’t see such prompts and we don’t tell you otherwise, assume that code belongs in the definitions pane.)

As you may recall from the reading, the upper text area in the DrRacket window, which is called the definitions pane, is used when you want to prepare a program “off-line”, that is, without immediately executing each step. Instead of processing what you type line by line, DrRacket waits for you to click on the button labeled Run (the second button from the right, in the row just below the menu bar) before starting to execute the program in the definitions pane. If you never click on that button, your program is never executed!

Let’s try using the definitions pane instead.

1. Enter the following definitions from the reading in that pane.

   #lang racket

   (define trial01 11.2)
   (define trial02 12.5)
   (define trialO3 8.5)
   (define trial04 10.6)


2. Try computing the average of the four trials in the interactions pane.

   > (* 1/4 (+ trial01 trial02 trial03 trial04))
   Error! trial01: undefined;
   Error!  cannot reference an identifier before its definition


3. It is likely that you will get an error message, just as the example suggests. Discuss with your partner why this might be the case.

4. DrRacket does not know about the information in the definitions pane until you click the Run button. Do so now. What do you think will happen if you enter the expression again?

   > (* 1/4 (+ trial01 trial02 trial03 trial04))


5. Enter the expression again. (Remember, Crtl-↑ will bring back the previous expression.) Then type Enter or Return to evaluate it.

6. It is likely that you got an error message. Discuss with your partner why this might be the case.

7. As you’ve likely hypothesized, the definition for trial03 was mistakenly typed as trialO3. (That is, it contains the letter “O” rather than the numeral “0”.) Correct the definition and click Run again. Then try entering the expression again.

8. Congratulations, you’ve successfully computed the average trial score! (At least you should have.) If not, review the error and try to fix it on your own with your partner’s help. If you get stuck, hail down an instructor or mentor!

9. You’ve copied code from elsewhere. That means that you have a responsibility to insert a “comment” that cites the original authors. A comment is a part of a Scheme program that has no effect on the execution of the program. We use comments in programs to explain our code or document different aspects of it, an important part of the software engineering process that we will discuss in more detail later in the semester.

   In Scheme, comments start with a semicolon and extend to the end the line. Here’s one possible citation.

   ; The following definitions are taken from
   ;   Autry, E., Curtsinger, C., Davis, J., Eikmeier, N., Hamid, F., Jimenez, P., Johnson, B., Klinge, T., Osera, P.M., Rebelsky, S.A, and Weinman, J. (2023).
   ;   An introduction to Racket and DrRacket.  Online document available at
   ;   _URL_.


   Insert that citation, using the appropriate URL for this webpage.

Note: You may encounter different expectations about the appropriate form of citations. Make it a habit to start by copying and pasting the URL of a document whenever you copy and paste code. Doing so shows that you have the appropriate intent. If you are expected to provide a full citation, you can go back later and add it.

Exercise 6: Definitions, revisited

Driver: A

Let’s try another definition. Define name as your name in quotation marks. For example,

(define name "Student")

(Replace Student with your own name for the proper effect.) Click Run and then find the value of the following expression using the interactions pane.

> (string-append "Hello " name)

Next, find the number of characters in the string with the following expression.

> (string-length name)

Note how this definition acts as shorthand: where ever name appears in the code, the string "Student" is substituted instead. We’ll discuss these definitions—which define variables—in detail in a subsequent class!

Exercise 7: Image definitions

Driver: A

1. Open a new definitions tab with File > New Tab or Ctrl-T.

2. In the definitions pane, write definitions for blue-circle, a solid circle of diameter 10, red-square, a solid red square of edge-length 20, and black-rectangle, an outlined black rectangle of width 30, height 20, and pen-width 10.

   #lang racket
   (require csc151)
   ; shapes.rkt
   ; A file from the first lab for CSC-151-NN SEMESTER
   ; Authors:
   ;   STUDENT ONE
   ;   STUDENT TWO
   ; Acknowledgements:
   ;   Any help you got

   (define blue-circle
     ???)

   (define red-square
     ???)

   (define black-rectangle
     ???)


3. Click Run and make sure that each of those values is defined correctly.

   > blue-circle
   ?
   > red-square
   ?
   > black-rectangle
   ?


4. You may recall that we can combine images with above and beside. Predict the output of each of the following.

   > (beside blue-circle red-square)
   ?
   > (beside red-square blue-circle)
   ?
   > (beside blue-circle blue-circle)
   ?
   > (beside blue-circle red-square blue-circle red-square blue-circle)
   ?
   > (beside red-square black-rectangle)
   ?
   > (above blue-circle black-rectangle)
   ?
   > (beside red-square (above black-rectangle black-rectangle) red-square)
   ?
   > (above black-rectangle (beside red-square blue-circle))
   ?


   After you have made your predictions, try out each line in the interactions pane. Were you correct in your predictions? If not, try to identify the cause of your mistake. Ask your partner questions or ask the instructor!

Exercise 8: Another image definition

Driver: A

Define a simple image (which you define as image using define) by combining those three basic shapes with above and beside.

Exercise 9: Saving to files

Driver: B

Let’s make sure that you can save and restore the work you do in the definitions pane. The source and destination names are displayed as paths below, but DrRacket uses a file browser to help you choose a file to load or save. Remember that the ~ character is shorthand for your home directory, which you can access by clicking the Home button on the left of the file browser DrRacket shows when you are saving or loading files.

• Save your definitions with the name shapes.rkt in a folder of your choice (e.g., a folder you’ve created for this course).
• Quit DrRacket.
• Restart DrRacket.
• In DrRacket, open shapes.rkt in your work folder.
• Click Run
• In the interactions pane, enter this expression to verify that everything is working (above black-rectangle (beside red-square blue-circle)).

Exercise 10: Other notations

Driver: B

As you’ve learned, Scheme expects you to use parentheses and prefix notation when writing expressions. What happens if you use more traditional mathematical notation? Let’s explore that question.

Type each of the following expressions at the Scheme prompt and see what reaction you get.

• (2 + 3)
• 7 * 9
• sqrt(49)
• (+ (87) (23))

You may wish to read the notes on this problem for an explanation of the results that you get.

Turning it in

Turn in the shapes.rkt file to Gradescope under the appropriate lab assignment. When doing so, please make sure that you submit the assignment as a group assignment and include your partner’s name in the submission!

For those with extra time

If you find that you have finished this laboratory before the end of class, you may try any of the following exercises.

Extra 1: Compound images

Write instructions to make an image of a simple house. If you are so inclined, you can use the (solid-equilateral-triangle edge-length "color") procedure to create a triangle for the roof.

Extra 2: Definitions, revisited

As you observed in the primary exercises for this laboratory, you can use the definitions pane to name values that you expect to use again (or that you simply find it more convenient to refer to with a mnemonic). So far, the only numbers we’ve named are simple values. However, you can also name the results of expressions.

1. In the definitions pane, write a definition that assigns the name seconds-per-minute to the value 60.

2. In the definitions pane, write a definition that assigns the name minutes-per-hour to the value 60.

3. In the definitions pane, write a definition that assigns the name hours-per-day to the value 24.

4. In the definitions pane, write a definition that assigns the name seconds-per-day to the product of those three values. Note that you should use the following expression to express that product.

   (* seconds-per-minute minutes-per-hour hours-per-day)


5. Run your definitions and confirm in the interactions pane that seconds-per-day is defined correctly.

6. Optionally, create a .rkt file to store those definitions.

Notes on the exercises

Notes on Exercise 10: Other notations

> (2 + 3)
Error! application: not a procedure;
Error! expected a procedure that can be applied to arguments
Error!   given: 2
Error!   arguments...:

When the Scheme interpreter sees the left parenthesis at the beginning of the expression (2 + 3), it expects the expression to be a procedure call, and it expects the procedure to be identified right after the left parenthesis. But 2 does not identify a procedure; it stands for a number. (A “procedure application” is the same thing as a procedure call.)

> 7 * 9
7
#<procedure:*>
9

In the absence of parentheses, the Scheme interpreter sees 7 * 9 as three separate and unrelated expressions – the numeral 7; *, a name for the primitive multiplication procedure; and 9, another numeral. It interprets each of these as a command to evaluate an expression: “Compute the value of the numeral 7! Find out what the name * stands for! Compute the value of the numeral 9!” So it performs the first of these commands and displays 7; then it carries out the second command, reporting that * is the name of the primitive procedure *; and finally it carries out the third command and displays the result, 9. This behavior is confusing, but it’s strictly logical if you look at it from the computer’s point of view (remembering, of course, that the computer has absolutely no common sense).

> sqrt(49)
#<procedure:sqrt>
Error! application: not a procedure;
Error! expected a procedure that can be applied to arguments
Error!   given: 49
Error!   arguments...: [none]```

As in the preceding case, DrRacket sees sqrt(49) as two separate commands: sqrt means “Find out what sqrt is!” and (49) means “Call the procedure 49, with no arguments!” DrRacket responds to the first command by reporting that sqrt is the primitive procedure for computing square roots and to the second by pointing out that the number 49 is not a procedure.

Return to the problem
