Mini-Project 2 : From practical to fanciful

Some background

Estimated time to read and understand the background: About 30 minutes.

As our programs get more complicated, the structure of our code and good names and formatting are not enough to make our code readable and correct. We need to rely on extrinsic means to ensure these things. To ensure that our code is readable, we use documentation to capture aspects of our code that are not obvious upon inspection. To ensure that our code is correct, we use tests that codify the correctness our programs through concrete examples.

As you may recall, we recommend a four-step process for developing procedures: Document the procedure, make a list of sample inputs and outputs that will help you determine whether your implementation is correct, write your procedure, and extend your list of sample inputs and outputs.

During our week on software engineering fundamentals, we’ll discuss these concepts in more detail. For now, we’ll employ some basic documentation and testing for our program.

Documentation

For each function that you write in this mini project, include a function comment that captures the types of the function as well as describes its output in a sentence or two. For example, here is a function comment for a function that finds the minimum of three numbers:

;;; (min-of-three x y z) -> real?
;;;   x : real?
;;;   y : real?
;;;   z : real?
;;; Returns the minimum of x, y, and z
(define min-of-three
  (lambda (x y z)
    (cond
      [(and (<= x y) (<= x z))
       x]
      [(and (<= y x) (<= y z))
       y]
      [else
       z])))

The function comment is a stylized comment that consists of the following three components:

  • (min-of-three x y z) -> real?: the signature of the function which names its arguments and describes the output type of the function. In Racket, we express the types with the predicate functions that we use in code to test whether an expression has that type. For example, this signature says that min-of-three has three arguments, x, y, and z and that it produces a real number (as tested by the real? function).
  • x : real? ...: the types of each of the parameters mentioned in the signature. Like the return type of the function, we document the types of the parameters with the predicates that we would use in code to test values of those types.
  • Returns the minimum of x, y, and z: finally, we include a brief sentence or two description of the behavior and output of the function. Here, the behavior of the function is simple, so we comparatively have little to say: the function returns the minimum of its arguments.

Tests

Up until this point, we have asked you to experiment with the functions that you write in the interactions window to check for correctness. This has the upside of being fast, but if you change your code, you need manually type in all those tests again which is tedious (which in turn makes it less likely you’ll recheck the correctness of your code). A better solution is to codify your tests in your code so that you can rerun the tests at will.

During our unit on software engineering fundamentals, we’ll introduce you to a library, rackunit, that makes test authoring and execution a breeze. For now, we’ll look at two basic RackUnit procedures

When we are developing predicates (procedures that return a Boolean) value, Racket (RackUnit) provides an important procedure to help us make that list of inputs/outputs and automatically check it for us: (test-equal? DESCRIPTION EXP EXPECTED), which evaluates EXP, compares it to EXPECTED, and prints an error message only if it fails.

For example,

> (test-equal? "the square root of 3 squared is 3" (sqrt (sqr 3)) 3)
> (test-equal? "the square root of 4 squared is 4" (sqrt (sqr 4)) 4)
> (test-equal? "the square root of 100 squared is 100" (sqrt (sqr 100)) 100)
> (test-equal? "the square of the square root of 100 is 100" (sqr (sqrt 100)) 100)
> (test-equal? "the square of the square root of 4 is 4" (sqr (sqrt 4)) 4)
> (test-equal? "the square of the square root of 3 is 3" (sqr (sqrt 3)) 3)
--------------------
the square of the square root of 3 is 3
. FAILURE
name:       check-equal?
location:   31-interactions from an unsaved editor:22:2
actual:     2.9999999999999996
expected:   3
--------------------

As this suggests, if the test succeeds, you get no output. However, if the test fails, you get a helpful FAILURE message. (Please don’t feel like a failure for getting such messages. All of us get them from time to time.)

While we cannot normally use test-equal? to compare images, we can use it to cmpare characteristics of those images. For example, consider the following procedure that is supposed to make a snowman of a certain height.

(define my-snowman
  (lambda (height)
    (above (circle (* height 1/4) "outline" "black")
           (circle (* height 1/3) "outline" "black")
           (circle (* height 5/12) "outline" "black"))))

Here are a few tests we’ve written to see whether it works. The first is what some folks call a “corner” or “corner case”; one with a strange but valid input. In this case, we’ve made a zero-height snowman.

(test-equal? "zero height snowman" (image-height (my-snowman 0)) 0)
(test-equal? "normal snowman" (image-height (my-snowman 40)) 40)
(test-equal? "small snowman" (image-height (my-snowman 5)) 5)
(test-equal? "large snowman" (image-height (my-snowman 100)) 100)

This time, we’re going to put the tests in the definitions pane and click “Run”. What do you think will happen? Let’s see …

--------------------
normal snowman
. FAILURE
name:       check-equal?
location:   let-it-snow.rkt:13:0
actual:     80
expected:   40
--------------------
--------------------
small snowman
. FAILURE
name:       check-equal?
location:   let-it-snow.rkt:14:0
actual:     10
expected:   5
--------------------
--------------------
large snowman
. FAILURE
name:       check-equal?
location:   let-it-snow.rkt:15:0
actual:     200
expected:   100
--------------------

Whoops! There’s something wrong with our procedure. Interestingly, it got the right height for the “zero height” snowman, but not for the rest. If we look closely, we see that each result is twice as large as it should be. Ah! I forgot that the first parameter to circle is the radius not the diameter. Let’s try again.

(define my-snowman
  (lambda (height)
    (above (circle (* height 1/8) "outline" "black")
           (circle (* height 1/6) "outline" "black")
           (circle (* height 5/24) "outline" "black"))))

(test-equal? "zero height snowman" (image-height (my-snowman 0)) 0)
(test-equal? "normal snowman" (image-height (my-snowman 40)) 40)
(test-equal? "small snowman" (image-height (my-snowman 5)) 5)
(test-equal? "large snowman" (image-height (my-snowman 100)) 100)

What happens when I click run this time?

Welcome to DrRacket, version 8.9 [cs].
Language: racket, with debugging; memory limit: 128 MB.
>

Whoo! No errors. That suggests that I got the height right.

As this example suggests, we should put our tests immediately after our code in the definitions pane. Then, when we click “Run”, we’ll quickly determine if there are any problems (and what those problems are). If we see no reports, we can be sure that the code passed all of our tests.

Note that to use these procedures, one must require the rackunit library with (require rackunit).

Part the first: Bar charts

Estimated time for this part: 30-60 minutes.

You will use the file bar-chart.rkt for this part of the mini-project.

While we can make images primarily to exercise our creativity, many images can also serve informative purposes. For example, many people rely on bar charts to help others understand and compare numerical data. In this part of the assignment, you will create simple bar charts.

Document and write a procedure, (bar-chart height label1 num1 color1 label 2 num2 color2 label3 num3 color3) that makes a three column bar chart. The heights of the three bars depend on num1, num2, and num3. The height of the bar with the largest number should be height. The heights of the other two bars should be appropriately proportional to that height. Each bar should appear in the corresponding color. The labels should appear below each of the corresponding bars. The numbers should appear within the bars. Bars should be 40 units wide. Use 12 point font for the labels and 10 point for the numbers.

Note that you can use (text str size color) to create text in an image. You then overlay that on top of the image.

We would strongly recommend that you create a separate (make-bar bar-height labe1 num color) procedure. (And you must create such a procedure to earn an E.)

Here are some examples. You may note that we’ve added black outlines to some bars and changed the color of the text. You are not required to do so! Feel free to outline every bar in black and to use black text, even if it’s hard to see.

(bar-chart 100
           "one" 50 "blue"
           "two" 75 "yellow"
           "three" 25 "lightpink")

Three bars next to each other.  The first bar is blue and of medium height.  The number 50 appears in white within it.  The word 'one' appears below it.  The second bar is yellow, taller than the other two, and outlined in black.  The number 75 appears within it, colored black.  The word 'two' appears below it.  The third is pink, shorter than the other two (half the height of the first bar, one third the height of the second bar), and outlined in black.  The number 25 appears within it, colored black.  The word 'three' appears below it.

(bar-chart 100
           "foo" 2.3 "black"
           "bar" 7.2 "gray"
           "baz" 11 "white")

Three bars next to each other.  The first bar is black and the shortest of the three.  The number 2.3 appears in white within it.  The word 'foo' appears below it.  The second bar is grey, between the two heights, and outlined in black.  The number 7.2 appears within it, in black.  The word 'bar' appears below it.  The third is white, taller than the other two, and outlined in black. The word 'three' appears below it.

Save your bar-chart procedure in a file named bar-chart.rkt.

Because we haven’t given you precise guidance on the separation of bars, it will be difficult to write automated tests for this procedure.

Part the Second: Transforming colors

Estimated time for this part: 30 minutes to read the new material, 30-60 minutes to write the procedures.

Save all of this work in color-transformation.rkt.

Note: You may need to update your csc151 library to get access to the rgb procedure and the image-map procedure.

As you have learned (or will soon learn), we can represent colors using a red/green/blue triplet or a red/green/blue/alpha four-tuple where each value is a number between 0 and 255. For the color components, the number represents the amount of each color in an additive model: 255 means “really bright” and 0 means “off”. (Don’t worry about the alpha for now.)

You can create a new RGB color with (rgb red-component green-component blue-component). For example, (rgb 128 0 128) creates a darkish purple, which we can see with

> (circle 30 "solid" (rgb 128 0 128))

a purple circle

We can also transform an existing color by reading its components with color-red, color-green, color-blue, and color-alpha and using those values to compute a new color. For example, here’s a procedure to make a color brighter.

;;; (color-brighter-32 c) -> color?
;;;    c : color?
;;; Create a brighter version of c by increasing each component by 32
;;; (if possible).
(define color-brighter-32
  (lambda (c)
    (rgb (+ (color-red c) 32)
         (+ (color-green c) 32)
         (+ (color-blue c) 32))))

We can try this out.

> (define my-purple (rgb 128 0 128))
> (beside (circle 30 "solid" my-purple)
          (circle 30 "solid" (color-brighter-32 my-purple))
          (circle 30 "solid" (color-brighter-32 (color-brighter-32 my-purple))))

three purple circles in a row, each brighter than the one to its left

But we’ve just learned about testing, so we should also test our procedure.

(test-equal? "brighter black" (color-brighter-32 (rgb 0 0 0)) (rgb 32 32 32))
(test-equal? "brighter white" (color-brighter-32 (rgb 255 255 255)) (rgb 255 255 255))
(test-equal? "mixed components" (color-brighter-32 (rgb 250 100 240) (rgb 255 32 255)))

Color transformations alone are a bit boring. So we use image-map to apply them to a complete image. For example, here is a picture of a kitten released under an unrestricted license. (You can make your own copy by right clicking and choosing “Save As …”.)

a white and orange kitten

And here’s what we get when we apply our color transfomration to the kitten twice.

> (define kitten (image-load "kitten.jpg"))
> (image-map color-brighter-32 (image-map color-brighter-32 kitten))

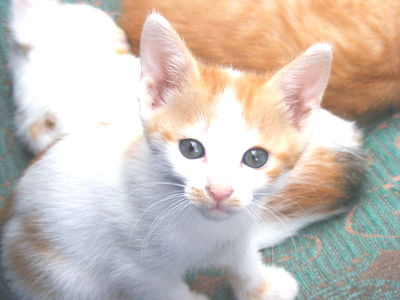

the same white and orange kitten, somewhat washed out

a. Document and write a procedure (color-extreme c), that takes one parameter, a color, and creates a new color in which each component is (a) 255 if the original is at least 128, or (b) 0, if the original is less than 128. You may not use conditionals.

> (color-extreme (color 0 64 200))
(color 0 0 255 255) ; we always end up with an alpha of 255
> (color-extreme (color 128 130 0))
(color 255 255 0)

Since you may not use conditionals, you will need to think creatively about what kinds of math might help.

Here’s our kitten, with color-extreme applied using image-map.

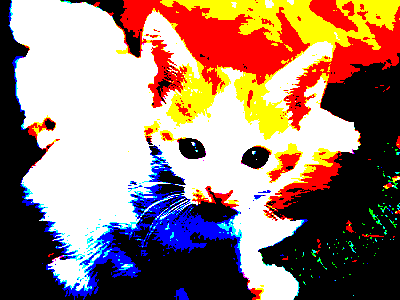

the same white and orange kitten, with white red yellow and blue as the primary colors we see

b. Write at least three tests to check whether your color-extreme procedure works correctly.

c. Document and write a procedure, (color-dominant c), that takes one parameter, a color, and creates a new color in which each component is either (a) 255, if it is the largest component of the original color (or tied for largest) or (b) 0, otherwise. Once again, you may not use conditionals.

> (color-dominant (color 0 5 0))
(color 0 255 0 255)
> (color-dominant (color 200 199 199))
(color 255 0 0 255)
> (color-dominant (color 10 0 10))
(color 255 0 255 255)
> (color-dominant (color 0 0 0))  ; You'll still get an M if you don't get this
(color 255 255 255 255)

Hint: You should be able to do this with a clever combination of max, division, rounding, and multiplication.

d. Write at least three tests to check whether your color-dominant procedure works correctly.

e. As you’ve seen, when we apply the typical color transformation, such as color-brighter or `color-redder, we eventually reach a limit of 0 or 255. But we can get some interesting effects by “wrapping around” at the end. For example, here’s the output from a function that adds 90 to a number, wrapping when we hit 255.

> (cyclic-add-90 75)
165 ; 75 + 90 = 165
> (cyclic-add-90 165)
255 ; 165 + 90 = 255
> (cyclic-add-90 166)
0 ; 165 + 90 = 256 so we wrap around to 0
> (cyclic-add-90 166)
1 ; 165 + 90 = 257 so we wrap around to 1

Here’s one possible definition of cyclic-add-90.

;;; (cyclic-add-90 v) -> integer? (in the range 0 .. 255)
;;;   v : integer? (in the range 0 .. 255)
;;; Add 90 to v, "wrapping around" when we hit 255.
(define cyclic-add-90
  (lambda (val)
    (modulo (+ val 90) 256)))

Document and write a procedure, (cyclic-add-colors c1 c2), that takes two colors as input and produces a new color formed by the cyclic addition of the corresponding components of the two colors.

> (cyclic-add-colors (color 90 90 90) (color 165 166 167))
(color 255 0 1 255)

Here’s yet another abuse of our kitten image.

(define a-color (color 64 32 96))
(define cyclic-add-a-color
  (lambda (c)
    (cyclic-add-colors a-color c)))
> (image-map cyclic-add-a-color kitten)

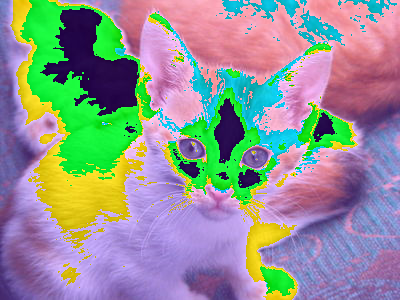

the same white and orange kitten, now in a strange color palette

f. Write at least four tests for cyclic-add-colors.

Part the Third: Freestyle

Estimated time for this part: 30 minutes to read the new material.

Please save this work in freestyle-transformation.rkt.

Document, write, and test your own “interesting” color transformation. (We may apply it to the kitten as a demonstration in class, but you should feel free to try it with other images, too.) Your color transformation should use at least one separate procedure that you write. (For example, the cyclic-add-a-color procedure from above would have counted if you hadn’t already been assigned to write cyclic-add-colors, since it uses `cyclic-add-colors.)

Please name your color transformation color-transform. We realize that the name is not very creative. But it will help us identify it in the midest of your code.

Grading rubric

Redo or above

Submissions that lack any of these characteristics will get an I.

[ ] Passes all of the one-star autograder tests.
[ ] Includes the specified files.
[ ] Includes an appropriate header on each file that indicates the
    course, author, etc.
[ ] Code runs in DrRacket.
[ ] Documentation for most procedures.

Meets expectations or above

Submissions that lack any of these characteristics but have all of the prior characteristics will get an R.

[ ] Passes all of the two-star autograder tests.
[ ] All procedures in part two include tests.  (Note that part three
    does not require formal tests.)
[ ] Code is well-formatted with appropriate names and indentation.
[ ] Code has been reformatted with Ctrl-I before submitting.
[ ] Documentation for most procedures is correct / has the correct form.

Exemplary / Exceeds expectations

Submissions that lack any of these characteristics but have all of the prior characteristics will get an M.

[ ] Passes all of the three-star autograder tests.
[ ] In the bar chars, separates the bars (e.g., by adding an "invisible"
    rectangle)
[ ] The `bar-chart` procedure is decomposed into appropriate subprocedures.
[ ] Avoids repeated work.
[ ] Tests include well-designed "edge cases".
[ ] Documentation for all procedures is correct / has the correct form.

Acknowledgements

The bar graph problem was modified from a similar problem given in CSC-151 2022 Spring.

The first set of color problems were modified from similar problems given in 2017 Spring (although in a different Scheme environment).

The Freestyle problem is all new.

The kitten image was downloaded from http://public-photo.net/displayimage-2485.html. Unfortunately, the site behind that URL has disappeared. Nonetheless, the kitten image lives on.
