Drawings as Values

Instead of thinking about images in terms of how we make them, we might also think of images in terms of the kinds of things that we are able to draw. For example, we might agree that a unit circle (a circle with diameter 1) is something we can draw, as is a unit square (a square with edge length 1). Why start with those two things? We have to start somewhere.

It might help to visualize these two simple drawings.

In these images, you see the unit circle and unit square (respectively) superimposed upon a simple grid. The greyish area of the grid represents the part of the coordinate system we normally use (non-negative columns, non-negative rows). The grid and greyish area are there only to provide context; they are not part of the “drawing”.

You can certainly imagine a few other simple things that one might draw.

Suppose we have something that everyone agrees can be drawn, such as the unit circle. Could we draw the same thing in a different color? Certainly. Can we draw a bigger or smaller version of the same thing? It seems like we should be able to do so.

To help us discuss these things, let's call something that can be drawn a “drawing”. So far, we know that

For example, a blue unit square is drawing, as is a unit circle scaled by a factor of 5. (The rendering intentionally cuts off part of the scaled circle , because it is so far outside of the normal image area.)

Is a red circle of diameter 4 centered at (0,0) a drawing? Yes. We can start with a unit circle centered at (0,0), scale it by 4, and recolor it red.

If we rely on the four definitions above, is a a purple circle of diameter 4 centered at (2,3) a drawing? How about a green oval centered at (0,0)? In each case of these cases, we probably have to say “No”, because we can't build either thing if we start with the basic shapes (unit circle, unit square) and using the two operations mentioned above (recolor, scale).

At this point, you may be asking yourself, “Why are we going into such detail about these simple drawings?” You may also be asking yourself, “Why aren't things that are obviously easy to draw, like the purple circle and green oval, considered drawings?”

We are going into this detail because it's a common practice in computer science (and in many other related disciplines, such as mathematics) to formally specify the kinds of data you work with. That is, in formalizing a group of values, we often specify some basic values (such as squares and circles) and then ways they modify those basic values to create new values (recolor, scale). Our mathematician friends often describe the natural numbers (the non-negative integers) in a similar way: “Zero is a natural number. If you add one to a natural number, you get a natural number.”

There are many benefits to such formal definitions, some of which we will explore in this course. One natural benefit is it helps to ensure that everyone talking about a kind of data agrees about the form of those data.

So, why are purple circles (not centered at (0,0)) and green ovals not drawings, even though they are obviously easy to draw? Because our definition does not currently admit them. The inability to specify these natural drawings may suggest a flaw in our definition. Of course, it may also suggest a difference of opinion on what is easy to draw. (Many people can draw squares and circles on graph paper, particularly if given a straight edge and a compass. Fewer can draw ellipses and ovals.)

Since our definition is still relatively simple, let's think of ways to extend it. Our preliminary of those questions dealt with a single drawing. Suppose we had two (or more) drawings and superimposed them. Would the result be a drawing? (Looking at it another way, if someone can draw each of two separate things, can they draw one and then the other on the same sheet of paper?) Yes, it seems so.

You may be able to think of other ways we can decide whether we can draw something. For example, if we can draw something centered at one position, we can probably draw it at another position.

However, computer scientists (and some mathematicians) often find it useful to describe things in this way.

In the remainder of this reading, we'll consider how we might describe drawings using a similar technique, using Scheme to formalize the values and operations. That is, we'll start with some basic drawing values and provide operations that build new drawings from old. In particular, we'll design a drawing data type. (For now, the implementation of the procedures on this data type will be concealed. As the semester progresses, we'll think about ways to implement those procedures.)

For our initial exploration of drawings as values, we'll start with two simple drawing values: the unit circle and the unit square, both centered at (0,0), and drawn in black. Why start with these two values? They're easy to think about, easy to draw, and relatively straightforward to think about.

In Scheme, we'll represent these two values as drawing-unit-circle and drawing-unit-square. Note, these are values, not procedures. That is, you will not place them immediately after an open parenthesis. Rather, you will use them in various procedures that take drawings as parameters.

drawing-unit-circle

drawing-unit-square

Could we have other basic values in addition to the unit circle and the unit square? Certainly. We might want lines, other kinds of polygons, more complex curves, and so on and so forth. However, for now, our exercises in design will involve only variations of these two values.

If all that we can draw are the unit circle and unit square, and can only draw them in one position, we're in a bit of trouble. So let's think of how we might vary them. Well ... both are fairly small, so we might want to scale them. Hence, we should provide procedures that scale drawings. (They will scale the two basic drawings, but as we come up with other drawings, it will scale those, too.) One basic version of the procedure will be called (scale-drawing factor drawing), and, given a drawing, will return a scaled version of the drawing.

When we scale the unit circle by 5, we can envision getting something like

(scale-drawing 5 drawing-unit-circle)

Very important: Note that scale-drawing does not change the underlying drawing. Rather, it builds a new one, just like those machines they advertise on television.

To mix things up a bit, let's say that in addition to scaling drawings in both directions (horizontally and vertically), we can also scale them in a single direction (horizontally or vertically). We'll call the procedures to do so hscale-drawing and vscale-drawing.

(hscale-drawing 6 drawing-unit-circle)

(vscale-drawing 4 drawing-unit-circle)

But we don't just want our images centered at (0,0). Hence, we should also be able to shift them around. We'll use (hshift-drawing amt drawing) to shift the drawing to the right (or to the left, if amt is negative) and (vshift-drawing amt drawing) to shift the drawing downward (or upward, if amt is negative). Once again, these don't really shift the original drawing. Rather, they make new copies of the drawing.

We can envision shifting our unit circle right, left, up, or down.

(hshift-drawing 1 drawing-unit-circle)

(hshift-drawing 2 drawing-unit-circle)

(hshift-drawing 0.5 drawing-unit-circle)

(hshift-drawing -0.5 drawing-unit-circle)

(vshift-drawing -0.25 drawing-unit-circle)

(vshift-drawing 1.5 drawing-unit-circle)

We can also work with previously-created drawings. Suppose we've defined circ with

(define circ (scale-drawing 5 drawing-unit-circle))

We can then build variants centered at (4,0) and at (0,3).

(define circ-right (hshift-drawing 4 circ))
(define circ-down (vshift-drawing 3 circ))

circ

circ-right

circ-down

Note that the images suggest that the first call to hshift-drawing on circ does not affect the position of big-circ. (Otherwise, circ-down would have been both horizontally and vertically shifted.) Once a drawing is centered at (0,0), it is forever centered at (0,0). To get a similar image in another place, we must shift it.

By combining the operations we've seen so far, we can now describe drawings that consists of a single black square, a single black rectangle, a single black circle, or a single black ellipse that falls anywhere on the canvas. How do we get rectangles and ellipses? By using different horizontal and vertical scales. For example, a black ellipse of width 5 and height 3, centered at (2,1) can be built from the unit circle as follows:

> (define sample-ellipse
    (vshift-drawing
     1
     (hshift-drawing
      2
      (vscale-drawing
       3
       (hscale-drawing
        5
        drawing-unit-circle)))))

sample-ellipse

Yes, that code is a bit long. However, one of the intellectual challenges of algorithm design (and of programming) is finding creative ways to use the basic operations you've been given. A consequence is that you'll sometimes write long code. And, as you'll see in a few days, if you find you're regularly writing similar long code, there are elegant ways to combine a group of small operations into a single big operation.

You'll also note that we put a lot of carriage returns in that code. Without the carriage returns, the code gets fairly “wide”, which makes it a bit less readable if your Scheme window is not very wide.

> (define sample-ellipse
    (vshift-drawing 1
                    (hshift-drawing 2
                                    (vscale-drawing 3
                                                    (hscale-drawing 5
                                                                    drawing-unit-circle)))))

Although we can describe a variety of drawings, the drawings we can describe are still black. Let's make them a bit more lively. In particular, let's add a procedure that recolors drawings. (That is, makes a copy of the drawing in another color.) We'll call that procedure (recolor-drawing newcolor drawing).

Our ellipse, recolored in purple, might then be rendered as follows.

(recolor-drawing "purple" sample-ellipse)

Our repertoire for describing drawings has expanded significantly. We've can now describe circles, squares, rectangles, and ellipses in a variety of colors and at any size and any location. But a single shape rarely makes a compelling drawing. Hence, we'll want to combine drawings into new drawings. The procedure (drawing-group drawing1 drawing2) combines drawings for us.

(drawing-group circ-right (recolor-drawing "red" circ-down))

Now, here's the another fun part. If we agree that a group of superimposed drawings is also a drawing, then we can do anything to that group that we did to the simpler drawings: We can recolor it, scale it, shift it, and combine it with other groups. Together, those different features will allow us to create some fairly interesting drawings. For example, once we've described a single face, we might make new copies of the face in different colors, at different locations, stretched in various ways, and so on and so forth. You'll explore these capabilities in the corresponding and subsequent labs.

As you might guess, one of the reasons we've looked at drawings in terms of operations that build new drawings from old is to encourage you to think in this new way about data. (Just as our mathematician friends think of integers in terms of a basic value and the operation that creates new integers, you can now think of drawings as basic values and operations that create new drawings.)

However, there's another reason that we like this way of describing drawings: All of the operations are pure: They do not modify the underlying value they are applied to. Rather they build new values. Contrast this to the various image operations you've learned. If you tell GIMP to switch the foreground color, GIMP's “state” changes, and the old foreground color is lost. In contrast, if you recolor a drawing, the original drawing is still in the old color. There are both advantages and disadvantages to working with pure operations, but, like working with a small set of operations, it's a useful intellectual challenge.

By the way, here's one great advantage of working with pure operations: Since the original values are still around somewhere, you never need to undo an action.

At the beginning of this reading, we noted that we often specify data types by providing the basic data values and operations that build new values from other values. Let's review the ones that we've come up with.

We have two basic drawing values.

We have a variety of procedures that operated on drawings.

The procedures described above constitute a basic library for describing simple drawings composed of circles, squares, ellipses, and rectangles.

Why don't we have other procedures, such as a procedure to draw a circle? Because we are trying to keep the set of procedures minimal. For example, we don't have a procedure to draw a circle because we already have a way to draw any circle: We start with the unit circle, recolor it, shift it, and scale it. Would a drawing-circle procedure make it easier to draw circles? Certainly. However, there are may procedures that could make drawing easier.

When creating a library, a designer must balance utility, concision of expression, and size of the library. In this particular case, we've tried to avoid adding procedures that duplicate existing functionality. For example, we don't need a drawing-circle procedure because anything we could do with that procedure, we can do with other procedures (just more of them). In contrast, we need hshift-drawing and vshift-drawing because no other procedure provides the ability to shift drawings. (We've violated the “don't duplicate functionality” principle once. Can you tell how?)

We've chosen this minimal design because of the audience: The procedures are designed for beginning CS students. Since one of our goals for this point in your career is to help you think about combining procedures (and, soon, designing your own procedures), it makes sense to keep the library small. If we were designing the library for, say, an artist, we would provide a richer library, even if we duplicated functionality.

We now know how to describe drawings. But what if we want to see the drawings we've described? The procedure (drawing->image drawing width height) will convert a drawing to an image that we can display. For example, we could show the simplest circle drawing on a 100x50 canvas with

> (image-show (drawing->image drawing-unit-circle 100 50))

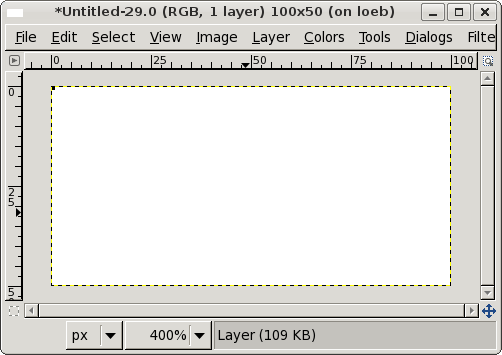

Of course, the unit circle is relatively small (diameter 1), so its rendering on the 100x50 canvas is essentially invisible, even when we zoom in.

Hence, in practice, we are likely to scale drawings before rendering. Often, we start with larger building blocks, made by scaling the original images. For example, here's a circle with radius of 50.

> (define big-circle (scale-drawing 100 drawing-unit-circle))

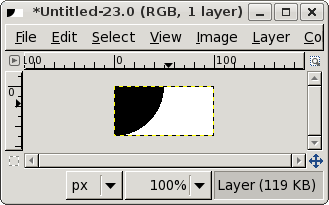

We could easily build an image for that circle.

> (image-show (drawing->image big-circle 100 50))

In the GIMP, we would then see something like the following.

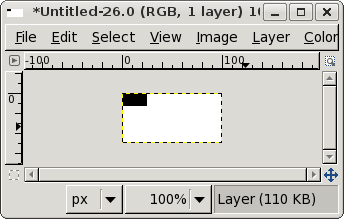

To make a rectangle that is 50 wide and 25 high, we might write

> (define rect (vscale-drawing 25 (hscale-drawing 50 drawing-unit-square)))
> (image-show (drawing->image rect 100 50))

We can also shift the big objects we create. In the following, low-circle will be centered at (0,25) and right-circle will be centered at (60,0).

> (define low-circle (vshift-drawing 25 big-circle))
> (define right-circle (hshift-drawing 60 big-circle))
> (image-show (drawing->image (drawing-group low-circle (recolor-drawing right-circle "red")) 100 100))

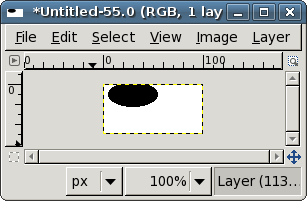

We can also build bigger ellipses. For example, here we've built an ellipse of width 50 and height 25, centered at (30,10).

> (define new-ellipse
    (vshift-drawing
     10
     (hshift-drawing
      30
      (vscale-drawing
       25
       (hscale-drawing
        50
        drawing-unit-circle)))))
> (image-show new-ellipse 100 50)

You can also do most of the work at a small scale, and then scale everything just before rendering. In fact, that's how we generated the figures for most of this reading: We built them at the scale suggested by the code, overlaid the drawings on a simple grid, scaled the overlaid drawing, and then rendered it.

So, how does MediaScheme represent drawings internally? Usually, you shouldn't be able to tell much about how programs represent their values. However, because of a quirk in the design of MediaScheme, you can see a bit about that representation. Let's see what happens when we just ask for the unit values, but don't display them.

> drawing-unit-circle
(drawing ellipse 0 "" -0.5 -0.5 1 1)
> drawing-unit-square
(drawing rectangle 0 "" -0.5 -0.5 1 1)

So, we see

The parentheses make it look like a procedure call (perhaps to the procedure drawing). However, in this case, they are Scheme's way of indicating that the values are grouped in a list, a simple ordered collection of values. You don't yet know how to work with lists, but that's okay, because you're not intended to. It is, however, potentially useful for you to understand the values in the lists that are used to represent drawings. You can find that out experimentally.

Let's see what happens when we shift the unit square.

> (hshift-drawing 5 drawing-unit-square)
(drawing rectangle 0 "" 4.5 -0.5 1 1)
> (vshift-drawing 3 drawing-unit-square)
(drawing rectangle 0 "" -0.5 2.5 1 1)

Okay, it seems like the first number after the string has something to do with the horizontal position of the square and the second number after the string has something to do with the vertical position. (What particular thing it represents we'll leave as an exercise for the reader.)

Next, let's see what happens when we enlarge the unit circle.

> (hscale-drawing 5 drawing-unit-circle)
(drawing ellipse 0 "" -2.5 -0.5 5 1)
> (vscale-drawing 6 drawing-unit-circle)
(drawing ellipse 0 "" -0.5 -3.0 1 6)
> (scale-drawing 10 drawing-unit-circle)
(drawing ellipse 0 "" -5.0 -5.0 10 10)

Interesting. Scaling the circle horizontally also affects the value that has to do with the horizontal position, and it also affects the third value after the string. Scaling the circle vertically affects the value that has to do with the vertical position, and also affects the fourth value after the string. In particular, it looks like the third value after the string is the width and the fourth value is the height.

Now, what about that 0 and the empty string? What else can we do with drawings? The only other thing we know how to do is to recolor them, so perhaps one has to do with the color. Let's see ...

> (recolor-drawing "red" drawing-unit-square)
(drawing rectangle 16711680 "" -0.5 -0.5 1 1)
> (recolor-drawing "blue" drawing-unit-square)
(drawing rectangle 255 "" -0.5 -0.5 1 1)
> (recolor-drawing "purple" drawing-unit-circle)
(drawing ellipse 8388736 "" -0.5 -0.5 1 1)

Okay, that first number seems to represent the color, but using some very strange numbering system.

What about that string? Well, it turns out the string is used in procedures that we have not yet taught you, so let's just leave it alone for now.

Why look at these internal issues? One key reason is that it's sometimes easier to understand what the transformations do by looking at the representation, rather than trying to understand the displayed image.
